Description

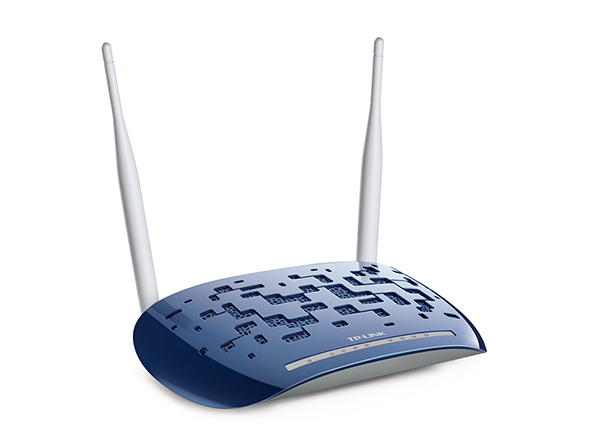

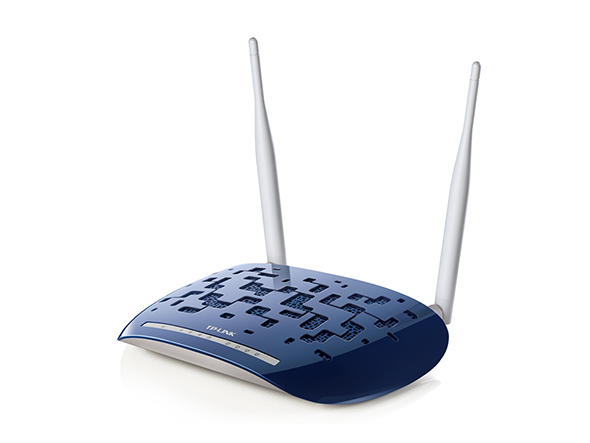

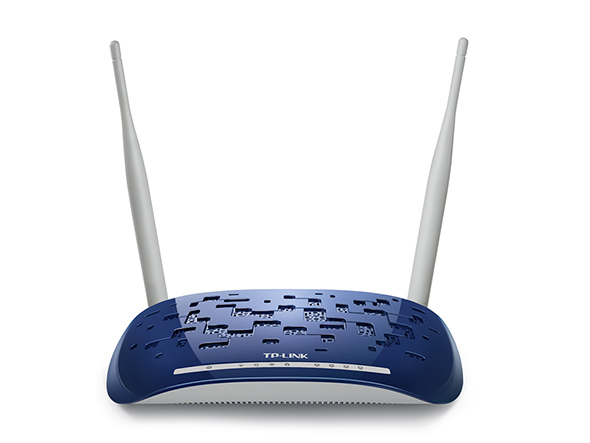

300Mbps Wireless N ADSL2+ Modem Router
- All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
- Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
For More Info Please Visit www.tp-link.com
| HARDWARE FEATURES | |
|---|---|

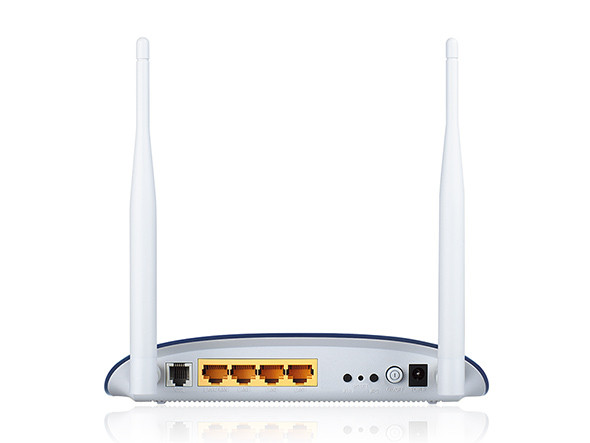

| Interface | 1 10/100Mbps RJ45 WAN/LAN Port 3 10/100Mbps RJ45 LAN Ports 1 RJ11 Port |
| Button | 1 Power On/Off Button 1 Wi-Fi On/Off Button 1 WPS Button 1 RESET Button |
| External Power Supply | 9VDC/0.85A |
| IEEE Standards | IEEE 802.3, 802.3u |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) , ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 7.7×5.1×1.4in.(195×130×36mm) |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2×5dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Wireless Speeds | Up to 300Mbps |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP, 802.1p ATM QoS,Traffic Control(IP QoS) |
| Security | NAT Firewall, LAN Side Firewall, MAC / IP / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death IP and MAC Address Binding |
| Operating Modes | ADSL Modem Router, Wireless Router |
| Management | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Port Forwarding | Virtual server, Port Triggering, DMZ, ALG |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| Protocols | Support IPv6 and IPv4 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC – Up to 8 PVCs |
| Advanced Features | Parental Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Network Address Translation (NAT); Port Mapping (Grouping) VLAN, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP |
| Wireless Schedule | Support 2.4GHz Wireless Schedule |
| Guest Network | 2.4GHz Guest Network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TD-W8960N External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
