Description

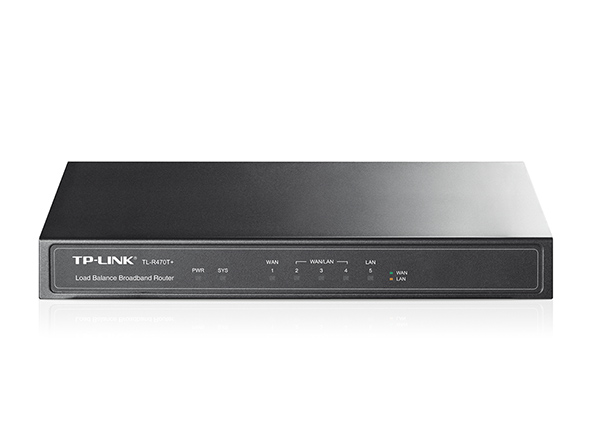

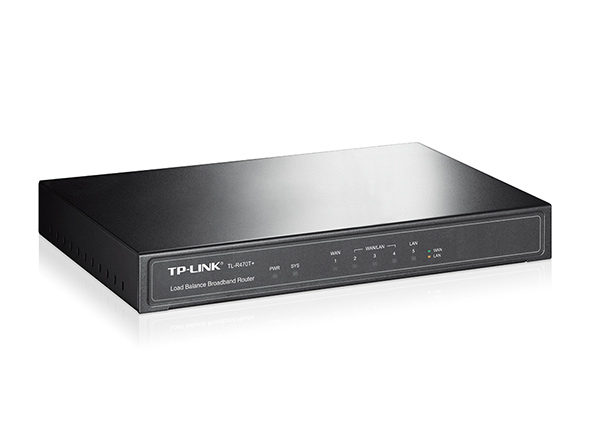

Load Balance Broadband Router
- Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities
- Provides extensive client account and network management for administrators with supported PPPoE Server
- Marshals bandwidth resource to specific clients based on their unique application environments
- Smaller case for cost-effective solution in the small office or Internet cafes network
For More Info Please Visit www.tp-link.com
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |

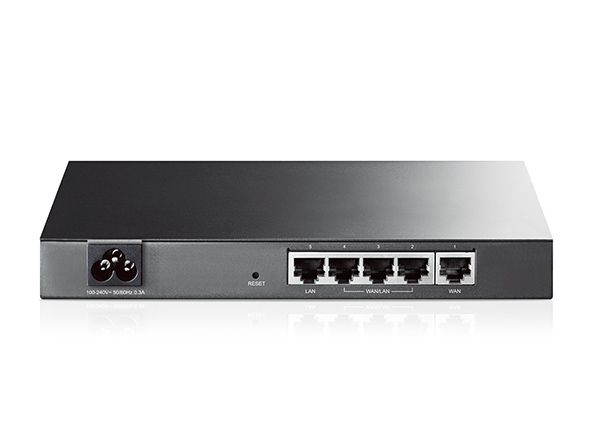

| Interface | 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| Button | Reset Button |
| Power Supply | Internal Universal Power Supply AC100-240V~50/60Hz input |
| Dimensions (W X D X H) | 8.2*5.0*1.0in. (209*126*26mm) |
| Flash | 4MB |
| DRAM | 64MB |
| LED | PWR, SYS, WAN, LAN, WAN/LAN |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 10000 |
| BASIC FUNCTIONS | |
|---|---|
| DHCP | DHCP Server/Client, DHCP Address Reservation |
| Switch Setting | Port Mirror, Rate Control, Port Configuration, Port VLAN |
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| MAC Clone | Modify WAN/LAN MAC Address |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/URL/WEB Filtering |
| IGMP | IGMP Proxy/IGMP Snooping |
| Forwarding | Virtual Server, Port Triggering, DMZ |
| Load Balance | Policy Routing, Link Backup |
| Routing | Static Routing |
| Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
| Traffic Control | Bandwidth Control, Session Limit |
| MANAGEMENT | |
|---|---|
| Service | PPPoE Server, E-Bulletin, Dynamic DNS, UPnP |
| Maintenance | Time Setting, Daylight Saving Time, SNMP, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-R470T+ Power Cord RJ-45 Ethernet Cable Quick Installation Guide Resource CD |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
